GeForce RTX 50 Series

NVIDIA GeForce RTX 5060 Ti

NVIDIA GeForce RTX 5060 Ti

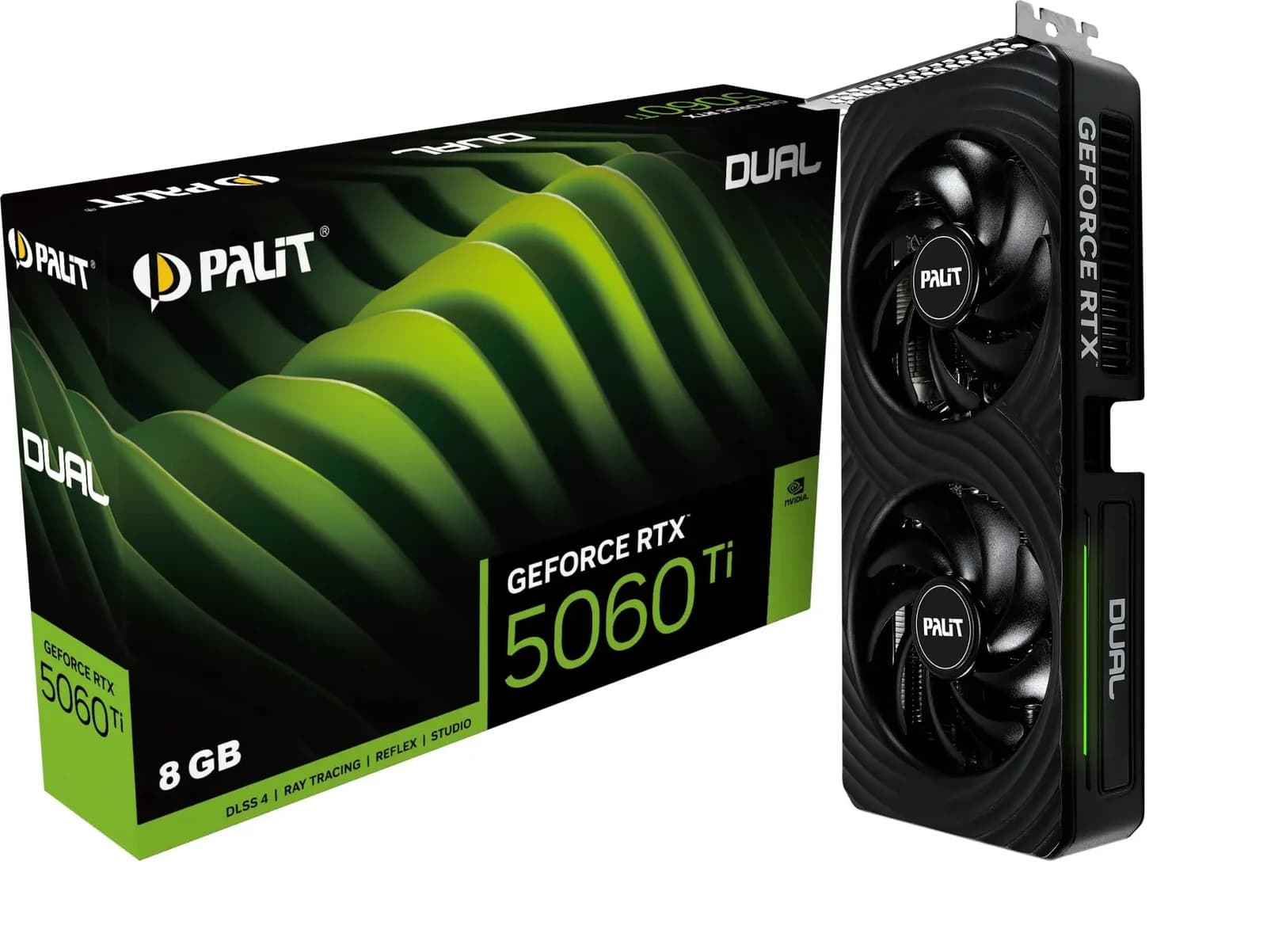

Representative PALIT product image. Board design, dimensions and power limits can vary by model.Source coverage for this specification group is incomplete.

At a glance

Launch date
Architecture
Blackwell
CUDA cores
4,608
Memory
16 GB GDDR72 published configurations
TGP
180 W

Hardware specifications

Compute

CUDA cores
4,608

Clocks

Base clock
2,410 MHz
Boost clock
2,570 MHz

Memory

Configuration 1 Capacity
16 GB
Configuration 1 Memory type
GDDR7
Configuration 1 Bus width
128-bit
Configuration 1 Bandwidth
448 GB/s
Configuration 2 Capacity
8 GB
Configuration 2 Memory type
GDDR7
Configuration 2 Bus width
128-bit
Configuration 2 Bandwidth
448 GB/s

Power

TGP
180 W
Recommended PSU
600 W
Power connectors
1x PCIe 8-pin cable OR 1x 300 W or greater PCIe Gen 5 cable (adapter in box)

Physical

Interface
PCI Express Gen 5
Display connectors
3x DisplayPort 2.1b, 1x HDMI 2.1b

Before you buy

Fit and power planning

Use the published values below as a starting point then verify the exact retail card, case and power supply you plan to use.

TGP
180 W
Recommended PSU
600 W
Power connectors
1x PCIe 8-pin cable OR 1x 300 W or greater PCIe Gen 5 cable (adapter in box)
Display connectors
3x DisplayPort 2.1b, 1x HDMI 2.1b

Confirm the exact partner-board specification before buying. Cooler size, case clearance, connector placement and power limits can differ from the published reference values.

Check case fitCheck power requirements

Measured evidence

Market and rendering evidence

Historical launch pricing for NVIDIA GeForce RTX 5060 Ti preserves source terms such as USD, MSRP and SEP. It is shown separately from one workload-specific community benchmark.

Historical launch price

Initial launch status
Verified
Currency
USD
Verified date
Event kind
Initial launch
Event date
Market
United States
Scope
8 GB $379
Price basis
Retail price
Source wording
At
Scope
16 GB $429
Price basis
Retail price
Source wording
At

Source

NVIDIA Blackwell GeForce RTX Arrives for Every Gamer, Starting at $299

NVIDIA - Published - Retrieved

Blender Cycles rendering

4,297.2 estimated samples per minute

Backend
OptiX
Confidence
Established
Submission count
589 submissions
Cohort
Blender 4.5.0 on Windows using OptiX across the standard Blender Benchmark scenes

This is a Cycles rendering community median in estimated samples per minute. It is not gaming FPS or an overall GPU rating.

Open Blender Open Data source

Retrieved

Open Blender Open Data methodology

Evidence record

Sources and verification

Specifications for NVIDIA GeForce RTX 5060 Ti were checked against the linked source material. Last verified .

The RTX 5060 Ti image context comes from a reviewed owner-supplied local PALIT manufacturer image and is not asserted by the NVIDIA specification sources. NVIDIA publishes 16 GB and 8 GB configurations and the primary scalar aliases follow the first 16 GB configuration.
