Radeon RX

AMD Radeon RX 9060 XT

AMD Radeon RX 9060 XT

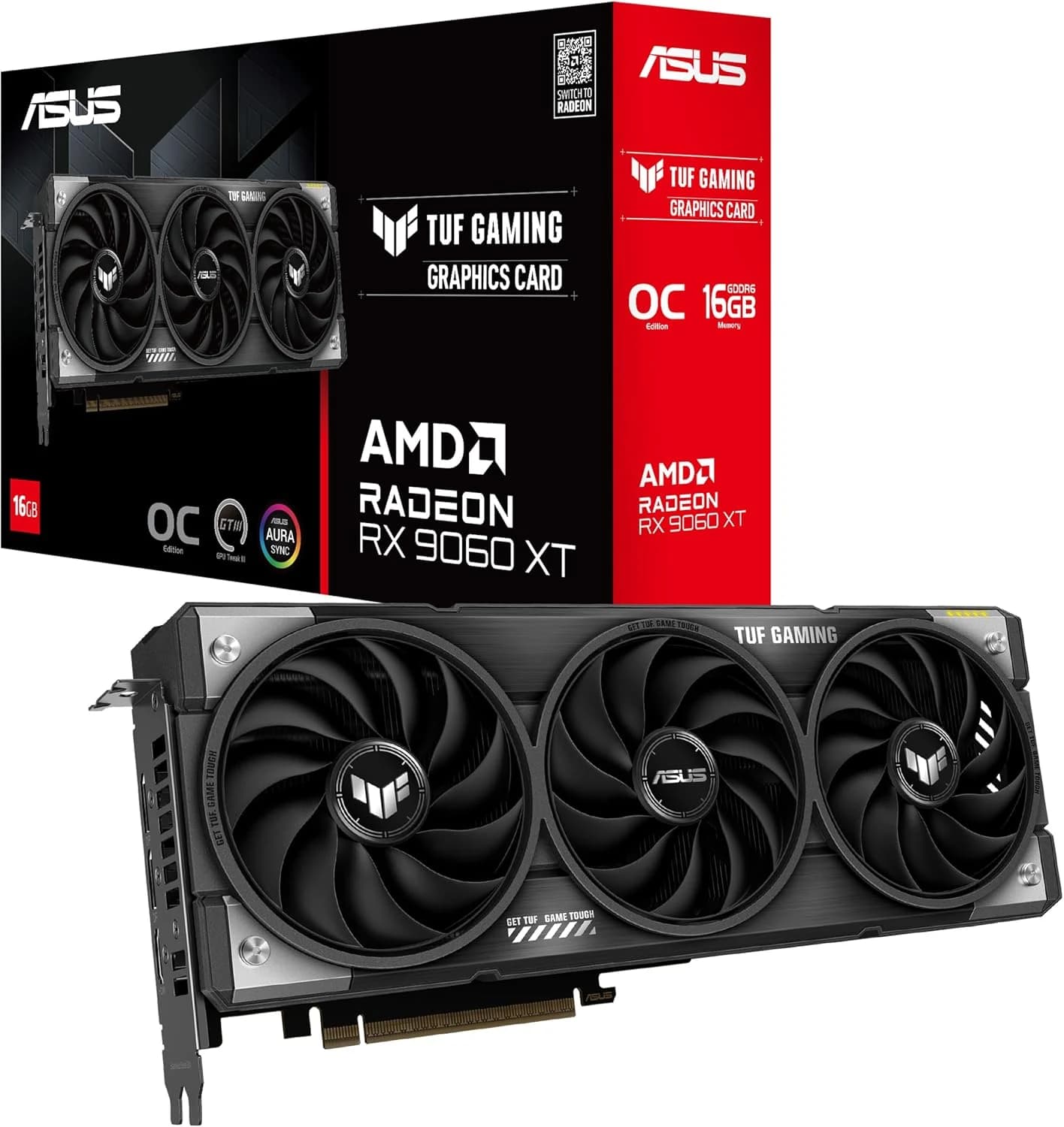

Representative ASUS product image. Board design, dimensions and power limits can vary by model.Source coverage for this specification group is incomplete.

At a glance

Launch date
Architecture
AMD RDNA 4
Compute units
32
Memory
16 GB GDDR62 published configurations
TBP
160 W

Hardware specifications

Compute

Compute units
32
Stream processors
2,048

Clocks

Game clock
2,530 MHz
Boost clock
3,130 MHz

Memory

Configuration 1 Capacity
16 GB
Configuration 1 Memory type
GDDR6
Configuration 1 Bus width
128-bit
Configuration 1 Bandwidth
320 GB/s
Configuration 2 Capacity
8 GB
Configuration 2 Memory type
GDDR6
Configuration 2 Bus width
128-bit
Configuration 2 Bandwidth
320 GB/s

Power

TBP
160 W
Recommended PSU
450 W
Power connectors
1x8-Pin

Physical

Interface
PCIe 5.0 x16
Display connectors
DisplayPort 2.1a and HDMI 2.1b; output counts not published

Before you buy

Fit and power planning

Use the published values below as a starting point then verify the exact retail card, case and power supply you plan to use.

TBP
160 W
Recommended PSU
450 W
Power connectors
1x8-Pin
Display connectors
DisplayPort 2.1a and HDMI 2.1b; output counts not published

Confirm the exact partner-board specification before buying. Cooler size, case clearance, connector placement and power limits can differ from the published reference values.

Check case fitCheck power requirements

Measured evidence

Market and rendering evidence

Historical launch pricing for AMD Radeon RX 9060 XT preserves source terms such as USD, MSRP and SEP. It is shown separately from one workload-specific community benchmark.

Historical launch price

Initial launch status
Verified
Currency
USD
Verified date
Event kind
Initial launch
Event date
Market
United States
Scope
8 GB $299
Price basis
SEP (suggested e-tail price)
Source wording
USD SEP (8GB $299; 16GB $349)
Scope
16 GB $349
Price basis
SEP (suggested e-tail price)
Source wording
USD SEP (8GB $299; 16GB $349)

Source

AMD Introduces New Radeon Graphics Cards and Ryzen Threadripper Processors

AMD - Published - Retrieved

Blender Cycles rendering

1,614.7 estimated samples per minute

Backend
HIP
Confidence
Established
Submission count
206 submissions
Cohort
Blender 4.5.0 on Windows using HIP across the standard Blender Benchmark scenes

This is a Cycles rendering community median in estimated samples per minute. It is not gaming FPS or an overall GPU rating.

Open Blender Open Data source

Retrieved

Open Blender Open Data methodology

Evidence record

Sources and verification

Specifications for AMD Radeon RX 9060 XT were checked against the linked source material. Last verified .

The RX 9060 XT image is the existing owner-supplied ASUS partner image and is not asserted by AMD sources. The 16 GB configuration is primary and the 8 GB configuration is retained second. The scalar 160 W TBP applies to AMD's 16 GB reference specification while the 8 GB version is rated at 150 W; partner board power can vary. The launch_date stores AMD's June 5 2025 availability date while AMD used launch language on May 20. AMD publishes no fixed dimensions or display output counts and retail partner designs can vary.

Where to buy

AMD Radeon RX 9060 XT

Confirm the selected model, seller, condition, delivery region and checkout total on the retailer's site. A listing is not a compatibility recommendation.

ASUS Dual RX 9060 XT 16GB

Part number: DUAL-RX9060XT-16G

Linked variant: 16 GB GDDR6

Partner-board listing. Clocks, cooling, dimensions, connectors and power limits can differ from the reference specifications on this page.

Affiliate link. As an Amazon Associate I earn from qualifying purchases.

View on Amazon

Related comparisons
