Historical launch price
- Initial launch status
- Verified
- Currency
- USD
- Verified date
- Event kind
- Initial launch
- Event date
- Market
- United States
- Scope
- Model as announced $349
- Price basis
- SEP (suggested e-tail price)
- Source wording
- $349 USD SEP
Radeon RX
AMD Radeon RX 5700
At a glance
- Launch date
- Architecture
- RDNA
- Compute units
- 36
- Memory
- 8 GB GDDR6
- TBP
- 180 W
Hardware specifications
Compute
- Compute units
- 36
- Stream processors
- 2,304
Clocks
- Game clock
- 1,625 MHz
- Boost clock
- 1,725 MHz
Memory
- Capacity
- 8 GB
- Memory type
- GDDR6
- Bus width
- 256-bit
- Bandwidth
- 448 GB/s
Power
- TBP
- 180 W
- Recommended PSU
- 600 W
- Power connectors
- 1x8-Pin + 1x6-Pin
Physical
- Interface
- PCIe 4.0
- Display connectors
- DisplayPort 1.4a + HDMI 4K60 support
Before you buy
Fit and power planning
Use the published values below as a starting point then verify the exact retail card, case and power supply you plan to use.
- TBP
- 180 W
- Recommended PSU
- 600 W
- Power connectors
- 1x8-Pin + 1x6-Pin
- Display connectors
- DisplayPort 1.4a + HDMI 4K60 support
Confirm the exact partner-board specification before buying. Cooler size, case clearance, connector placement and power limits can differ from the published reference values.
Measured evidence
Market and rendering evidence
Historical launch pricing for AMD Radeon RX 5700 preserves source terms such as USD, MSRP and SEP. It is shown separately from one workload-specific community benchmark.
Blender Cycles rendering
Not enough compatible Blender 4.5 data
- Backend
- HIP
- Confidence
- Insufficient
- Submission count
- 2 submissions
- Cohort
- Blender 4.5.0 on Windows using HIP across the standard Blender Benchmark scenes
This is a Cycles rendering community median in estimated samples per minute. It is not gaming FPS or an overall GPU rating.
Open Blender Open Data source
Open Blender Open Data methodologyRetrieved
Evidence record
Sources and verification
Specifications for AMD Radeon RX 5700 were checked against the linked source material. Last verified .

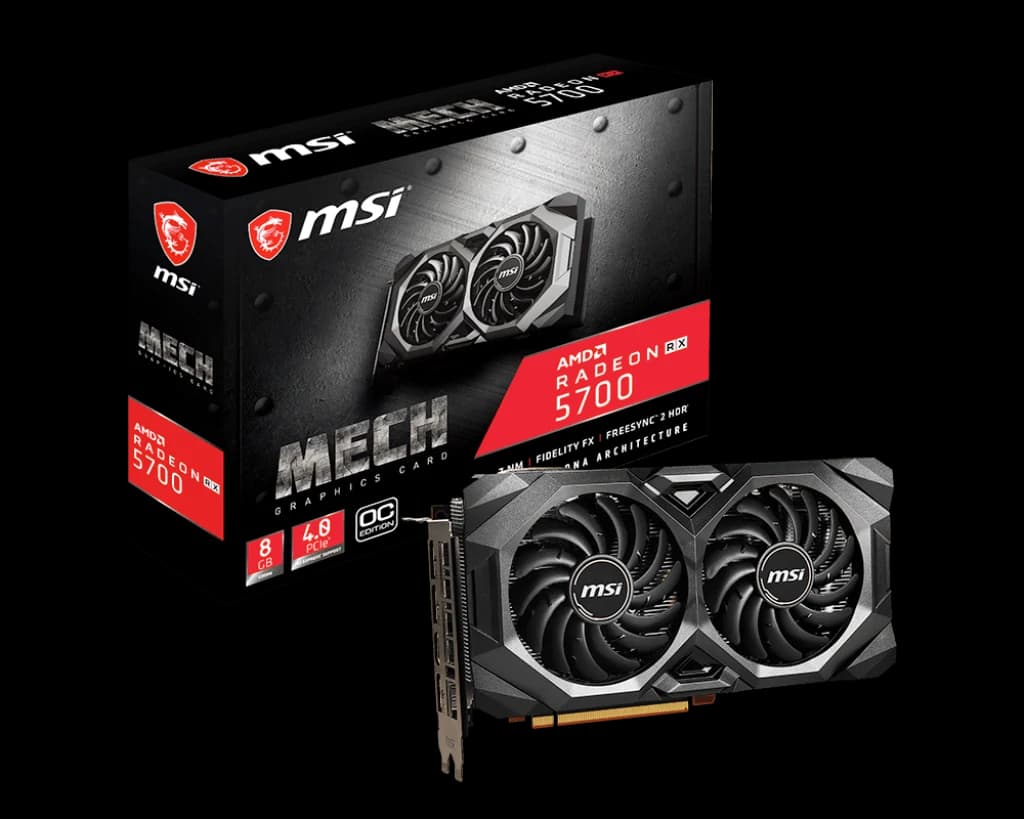

The RX 5700 image is the existing owner-supplied MSI partner image and is not asserted by AMD sources. Actual worldwide availability was confirmed on 2019-07-07. Current AMD sources support PCIe 4.0 but do not publish lane width, dimensions, slot width or display output counts. The 180 W TBP, 600 W PSU recommendation and 1x8-Pin + 1x6-Pin connector value are AMD model-page guidance while partner cards can differ.
- AMD Radeon™ RX 5700 Drivers and Downloads | Latest Version
AMD - Manufacturer
Supports: Launch date, Architecture, Compute, Clocks, Memory, Power and Physical design
Retrieved
- AMD Unleashes Ultimate PC Gaming Platform with Worldwide Availability of AMD Radeon™ RX 5700 Series Graphics Cards and AMD Ryzen™ 3000 Series Desktop Processors
AMD - Manufacturer
Supports: Launch date, Architecture, Compute, Clocks, Memory and Physical design
Retrieved
Where to buy
AMD Radeon RX 5700
Confirm the selected model, seller, condition, delivery region and checkout total on the retailer's site. A listing is not a compatibility recommendation.
XFX RX 5700 DD Ultra 8GB
Part number: RX-57XL8LBD6
Linked variant: 8 GB GDDR6
Partner-board listing. Clocks, cooling, dimensions, connectors and power limits can differ from the reference specifications on this page.
