Historical launch price
- Initial launch status
- Verified
- Currency
- USD
- Verified date
- Event kind
- Initial launch
- Event date
- Market
- United States
- Scope
- Model as announced $279
- Price basis
- SEP (suggested e-tail price)
- Source wording
- USD SEP
Radeon RX
AMD Radeon RX 5600 XT
At a glance
- Launch date
- Architecture
- RDNA
- Compute units
- 36
- Memory
- 6 GB GDDR6
- TBP
- 150 W
Hardware specifications
Compute
- Compute units
- 36
- Stream processors
- 2,304
Clocks
- Game clock
- 1,375 MHz
- Boost clock
- 1,560 MHz
Memory
- Capacity
- 6 GB
- Memory type
- GDDR6
- Bus width
- 192-bit
- Bandwidth
- 336 GB/s
Power
- TBP
- 150 W
- Recommended PSU
- 550 W
Physical
- Interface
- PCIe 4.0
- Display connectors
- DisplayPort 1.4a + HDMI 4K60 support
Before you buy
Fit and power planning
Use the published values below as a starting point then verify the exact retail card, case and power supply you plan to use.
- TBP
- 150 W
- Recommended PSU
- 550 W
- Display connectors
- DisplayPort 1.4a + HDMI 4K60 support
Confirm the exact partner-board specification before buying. Cooler size, case clearance, connector placement and power limits can differ from the published reference values.
Measured evidence
Market and rendering evidence
Historical launch pricing for AMD Radeon RX 5600 XT preserves source terms such as USD, MSRP and SEP. It is shown separately from one workload-specific community benchmark.
Blender Cycles rendering
601.0 estimated samples per minute
- Backend
- HIP
- Confidence
- Provisional
- Submission count
- 14 submissions
- Cohort
- Blender 4.5.0 on Windows using HIP across the standard Blender Benchmark scenes
This is a Cycles rendering community median in estimated samples per minute. It is not gaming FPS or an overall GPU rating.
Open Blender Open Data source
Open Blender Open Data methodologyRetrieved
Evidence record
Sources and verification
Specifications for AMD Radeon RX 5600 XT were checked against the linked source material. Last verified .

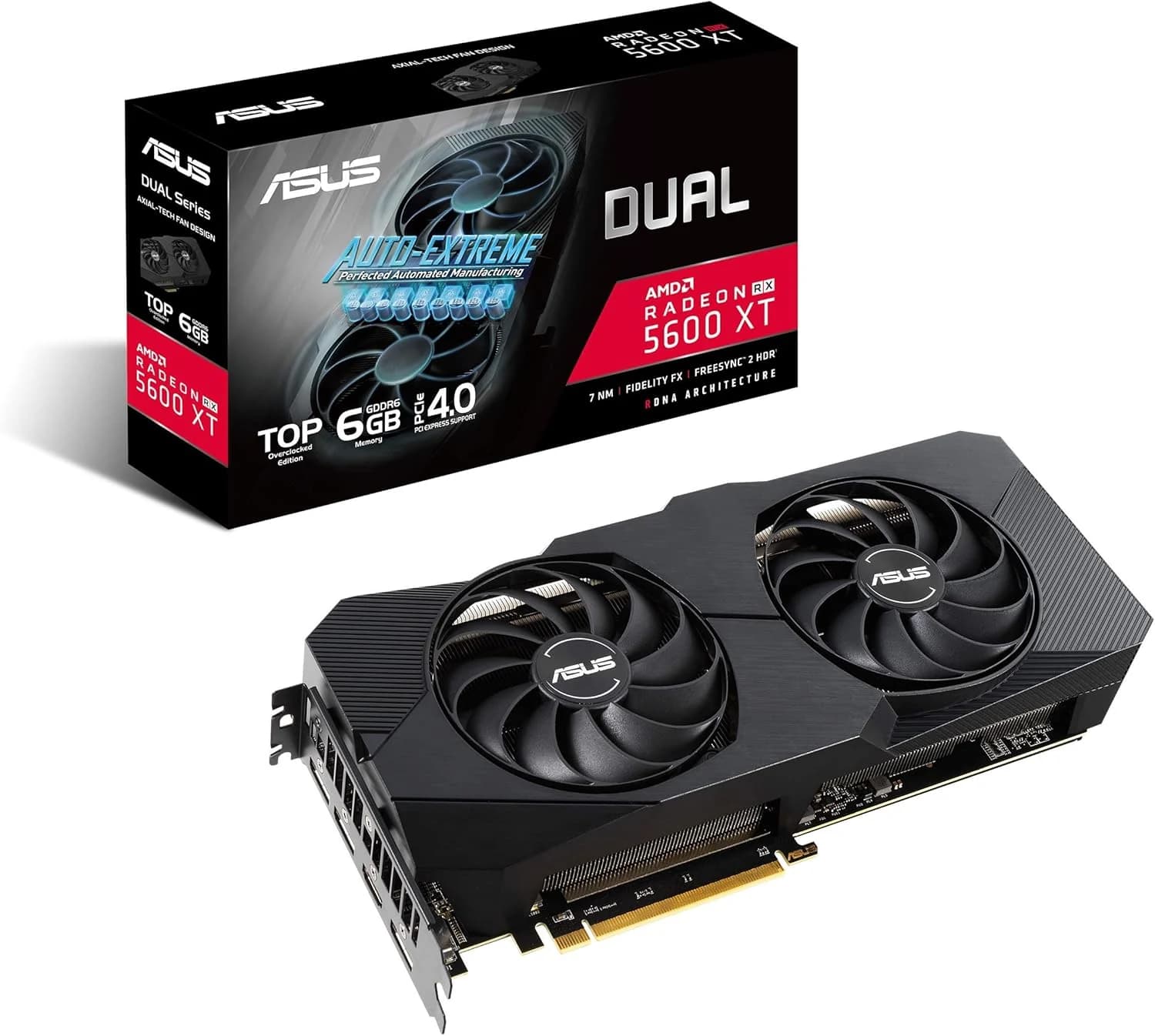

The RX 5600 XT image is the existing owner-supplied ASUS partner image and is not asserted by AMD sources. AMD announced 2020-01-21 as expected board-partner availability but a current first-party page confirming actual on-sale availability that day was not found. Current AMD specifications publish 12 Gbps and 14 Gbps memory speeds but only one up-to-336 GB/s raw bandwidth value. One 6 GB configuration is stored with no calculated second bandwidth. AMD does not publish a power-connector arrangement, reference dimensions, slot width or output counts. Partner clocks, memory speed, connectors and board dimensions can vary.
- AMD Radeon™ RX 5600 XT Drivers and Downloads | Latest Version
AMD - Manufacturer
Supports: Compute, Clocks, Memory, Power and Physical design
Retrieved
- AMD Unveils Four New Desktop and Mobile GPUs, including AMD Radeon™ RX 5600 Series: Ultimate 1080p Gaming, Breath-Taking Visuals and Game-Changing Software Features
AMD - Manufacturer
Supports: Launch date, Architecture, Compute, Clocks, Memory and Physical design
Retrieved
This source announces expected availability beginning 2020-01-21 rather than confirming an actual on-sale event.
- Fast Just Got Faster
AMD - Manufacturer
Supports: Memory
Retrieved
